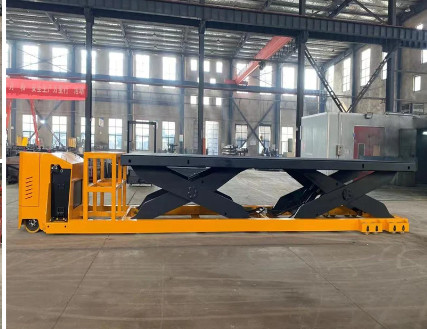

Fully Electric Pallet Stacker Large Tonnage 20 Ton 28 Ton 20000 KGS 280000 KGS

Brand Name : YONGJIELI

Model Number : CBD25

Certification : CE

Place of Origin : ANHUI, CHINA

MOQ : 1 PC

Payment Terms : L/C, T/T, D/A, D/P, Western Union

Supply Ability : 50 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : EXPORT PACKING

Cylinder : Double oil

Battery : Lithium Battery

Braking Form : Electromagnetic braking

Power : AC

Steering Form : Electronic steering

Battery Voltage : 48 - 80 V

Charging Time : 4 - 6 hours

Model : Electric Pallet Forklift

Operation Mode : Walking type

Power Source : Electric

Power Type : Electric

Tire Type : Solid/Pneumatic

Contact Now

Pallet stacker: suitable for single sided pallets, cargo handling and stacking; Standard load capacity: 1000-3000kg, non-standard customized 3500-100000kg. The length of the 1-2 ton cargo fork is 1150mm, the outer width of the cargo fork is 685/560mm, the minimum ground clearance of the cargo fork is 90mm, the lifting height is 1600-600mm, and 3500-10000kg. Customized according to customer requirements. Pallet stackers are commonly used for stacking goods between shelves.

Electric Pallet Truck
Model: CDD160-280
Load: 16000-280000KG

Advantage:

  • Double oil cylinders
  • American CURTIS brand drive control system
  • Multifunctional integrated handle
  • Electronic steering, portable
  • Integral low noise hydraulic pump
  • AC drive, brushless, motor maintenance free
  • Lifting power limit, extending the service life of hydraulic motor and battery
  • Body damping system, pedal and handle damping

Safety:

  • Curve automatic deceleration device
  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device
  • Cylinder safety shut-off valve

Product parameters:

Name Electric pallet truck
Model CBD200
Load kg 20000
Load center mm 600
Min. ground clearance mm 145
Max. ground clearance mm 265
Control form Side standing
Vehicle width mm 1250
Total length of vehicle body mm 2220
Fork outer width mm 800
Maximum ground clearance of steering wheel mm 1275
Turning radius mm 2015
Fork size mm 1200x340
Right angle stacking channel mm 2720 (pallet size 1000*1000)
Traveling speed (loaded/ unloaded) km/h 5/ 6
Lifting motor (S3-15%) kw 4.5
Travel motor (S2-60min) kw 4.0
Steering motor kw 0.5
Braking form Electromagnetic braking
Steering form Electronic steering
Controller CURTIS
Body weight kg 1700
Battery weight kg 500
Climbing gradient (full load/ no load) % 3/8
Battery capacity v/ah 48/300
Charger v/ah 48/50
Number of tires, front/ rear (X= drive wheel) 4/1X+8
Drive wheel mm Φ343 *135
Bearing wheel mm Φ125*100
Auxiliary wheel mm Φ150*50
Lifting speed (full load/ no load) mm/s 40/54
Falling speed (full load/ no load) mm/s 55/45
Tire type Polyurethane
Battery replacement method Side pull type

The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
